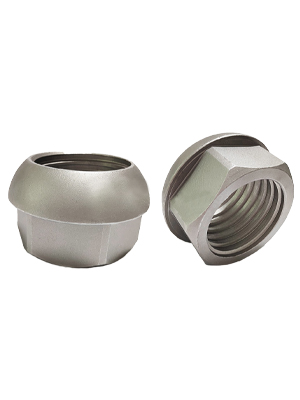

There are domed nuts and R-Nuts and T-Nuts.
FEATURES
- Domed side / hexagon body
- C45/Cr40 high quality steel, EN10083
- Hardness HRC 20-30
- Thread L/R hand, R-thread/T-thread, ISO10208/ T standard
- Corrosion protection: hot-dipped galvanized (HDG) according to EN ISO 1461 / epoxy coating (EC) according to EN 12944
- Customizable
SPECIFICATIONS DATA
Model |
across flats (mm) |
Length (mm) |
Domed diameter (mm) |
Basic Thread Size (mm) |
Ultimate load (KN)≥ |
Yield load (KN)≥ |
Weight (Kg) |
Note |
R25 |
41 |
41 |
50 |
21.8*1.5/12.7 |
250 |
190 |
0.30 |
Can Hot dip galvanizing / customized |
R32 |
46 |
45 |
60 |
28.4*1.5/12.7 |
360 |
280 |
0.45 |
|
R38 |
55 |
65 |
70 |
35*1.5/12.7 |
500 |
400 |
0.82 |
|
R51 |
75 |
70 |
90 |
47*1.5/12.7 |
800 |
630 |
1.85 |
|
T30 |
46 |
41 |
56 |
26*2.2/13.2 |
320 |
260 |
0.38 |
|
T40 |
60 |
68 |
74 |
37*2.2/13.2 |
660 |
525 |
1.01 |
|
T52 |
75 |
70 |
90 |
49.5*1.5/13.2 |
930 |
730 |
1.8 |
|
T76 |
100 |
85 |
120 |
70*3.1*12.7 |
1900 |
1500 |
2.85 |
|
T103N |
125 |
90 |
150 |
96*3.1*12.7 |
2300 |
1800 |
4.2 |
|
T103S |
145 |
120 |
170 |
96*3.1*12.7 |
3700 |
2600 |
9.45 |
