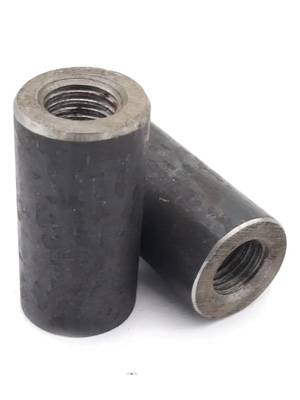

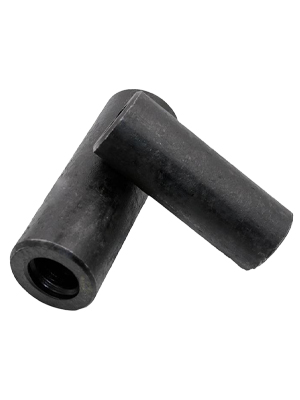

Couplers are used for extending the hollow anchor bars. Couplers can safely transfer the system load, with the faces of anchor bolts bearing against each other to ensure safe energy transfer between the anchor bars and the drill bit without affecting the couplers mechanically.
All couplers are made from quality steel materials which are supplied by qualified suppliers. We refuse second-hand/recycled materials!
FEATURES
- Sealing ring designed with Rayon patent
- Cr40 high quality steel, EN10083
- Hardness HRC 20-30
- Thread L/R hand, R-thread/T-thread, ISO10208/ T standard
- Corrosion protection: hot-dipped galvanized (HDG) according to EN ISO 1461 / epoxy coating (EC) according to EN 12944
- Customizable
COUPLER SPECIFICATION DATA
Model |
Outer diameter |
Length |
Basic Thread Size |
Ultimate load（KN）≥ |
Yield load（KN）≥ |
Weight（Kg） |
Note |
R25N |
36 |
130 |
21.8*1.5/12.7 |
200 |
150 |
0.60 |
Can have sealing function / Hot dip galvanizing / customized |
R25S |
36 |
150 |
21.8*1.5/12.7 |
250 |
190 |
0.70 |
|
R32N |
42 |
150 |
28.4*1.5/12.7 |
280 |
230 |
0.70 |
|
R32S |
42 |
160 |
28.4*1.5/12.7 |
360 |
280 |
0.75 |
|
R38N |
51 |
180 |
35*1.5/12.7 |
500 |
400 |
1.3 |
|
R38S |
51 |
200 |
35*1.5/12.7 |
550 |
450 |
1.43 |
|
R51L |
63 |
200 |
47*1.5/12.7 |
550 |
450 |
2.2 |
|
R51N |
63 |
220 |
47*1.5/12.7 |
800 |
630 |
2.4 |
|
T30 |
42 |
105 |
26*2.2/13.2 |
320 |
260 |
0.6 |
|
T40 |
57 |
160 |
37*2.2/13.2 |
660 |
525 |
1.7 |
|
T52 |
68 |
180 |
49.5*1.5/13.2 |
930 |
730 |
2.2 |
|
T76L |
97 |
160 |
70*3.1*12.7 |
1200 |
1000 |
3.8 |
|
T76N |
97 |
180 |
70*3.1*12.7 |
1600 |
1200 |
4.25 |
|
T76M |
97 |
200 |
70*3.1*12.7 |
1700 |
1300 |
4.7 |
|
T76S |
97 |
220 |
70*3.1*12.7 |
1900 |
1500 |
5.2 |
|
T103N |
125 |
220 |
96*3.1*12.7 |
2300 |
1800 |
7.75 |
|
T103S |
145 |
260 |
96*3.1*12.7 |
3700 |
2600 |
17.5 |
|
T103 |
133 |
260 |
96*3.1*12.7 |
2500 |
2000 |
11.55 |
