Drapery mesh used in Slope Protection System

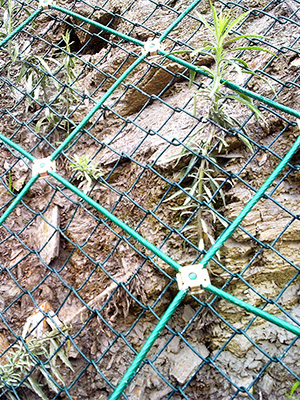

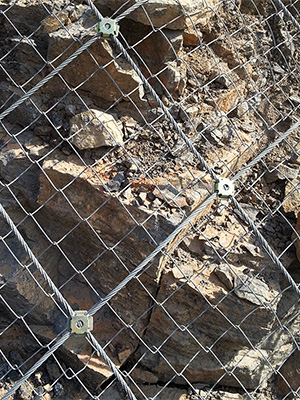

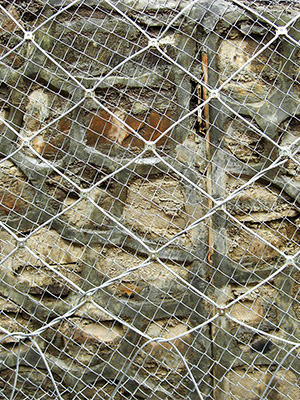

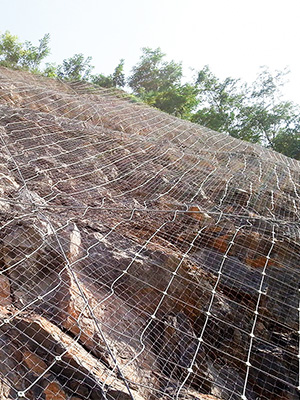

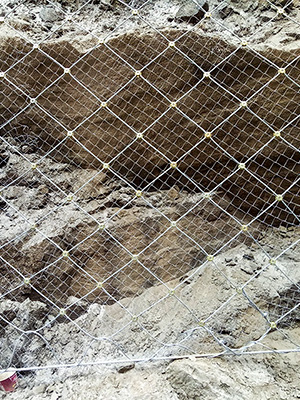

Flexible high-strength steel Drapery mesh (diamond-shaped steel wire mesh, high-strength steel wire grid) as a major component of protection system is against the rock slope collapsed, dropped, such as flyrock blasting. With the technology development and application, improving the usage of construction technology, standard modular operation, Slope Stabilization Mesh System have been applied in the geological disasters on the large scale.
Slope Stabilization Drapery mesh System is designed by the latest international standard of rock slope protection system. Compared with traditional construction methods, the system has overcomed many rigid construction defects, and is shorten the duration and cost of construction. The whole system is composed of high-strength steel wire, bolt and other installation components.
According to <Railway industry standard:TB/T 3038-2004> and <traffic industry standard:JT/T528-2004>.
|
Type |
Mesh Type |
Structure Configure |
Function |
|
GAR1 Common Simple Type |
Steel Wire Netting |
Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope |
Protection, Restriction on the slope of rocks movement,Against the collapse |
|
GAR2 Common Type |
Steel Wire Netting |
System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-∮16)+Steel Wire Netting(◇08/300/4*4㎡)+Oversewed Rope(∮8) |
Slope Reinforcement,Protect from collapse and weathering. |
|
GPS1 Common Use |
Steel Wire Netting+ Steel Wire Grid |
Same to GAR1+ Steel Wire Grid |
Same To GAR1, When there are small rocks. |
|

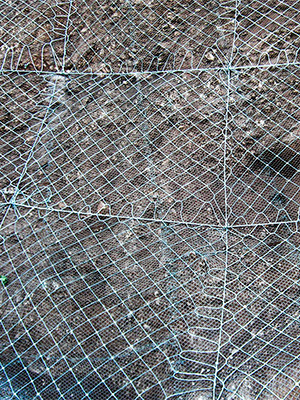

GPS2 Common Use |
Steel Wire Netting+Steel Wire Grid |
Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope（2-∮16）+ Steel Wire Netting(◇08/300/4*4㎡）+ SO/2.2/50 Steel Wire Grid+System Anchor］ |
Same To GAR2, With small unstable rocks or terrene slope. |
