The spider shaped rock protection system consists of the spiral rope net, nails and anchors, spike plates as standard anchorage, border and temporary ropes and net connection elements.
Spider Rock Mesh
Main Components: The spider shaped rock protection system consists of the spiral rope net, nails and anchors, spike plates as standard anchorage, border and temporary ropes and net connection elements.

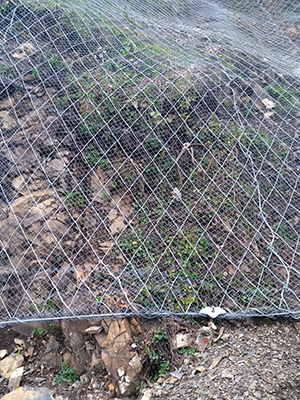

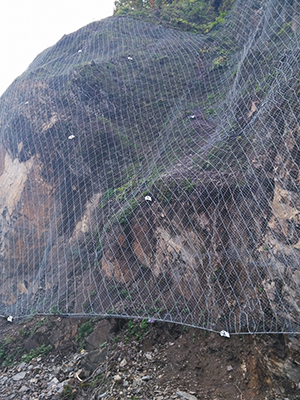

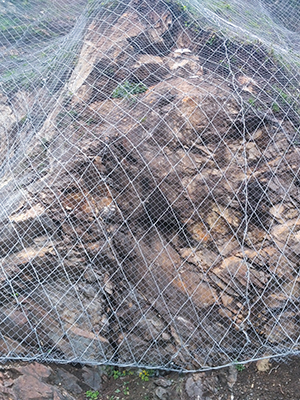

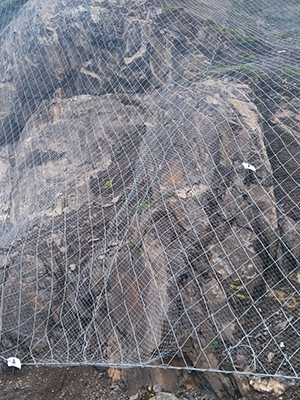

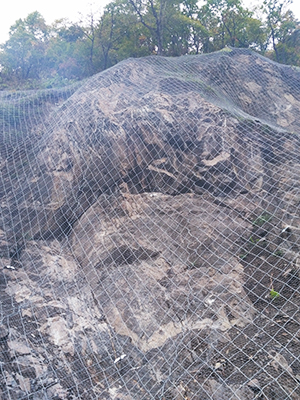

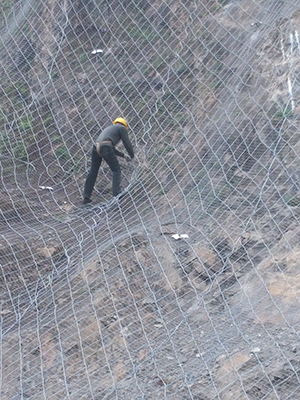

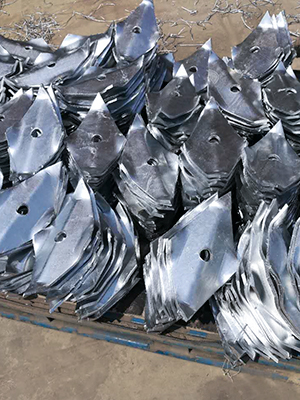

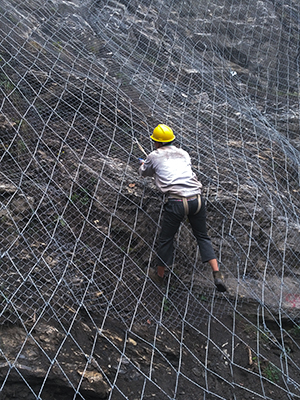

Installation: Spider shaped is installed in rolls of 3.3 x 21 m. By means of spider spike plates the spiral net can bestretched over edges and rock spurs with rock nails or rock anchors, or anchored in hollows and niches –depending on the nature of the rock, together with a fine secondary mesh.
Application Area: Rockfalls, Avalanches, Tourism and recreation areas, rough and narrow gullies, etc.
Standard Specification:

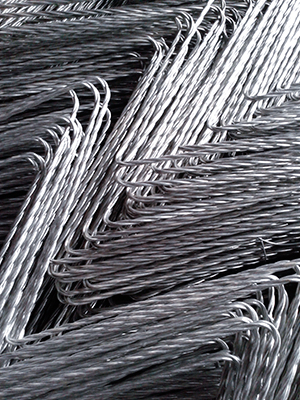

SPIDER spiral rope net:
Rope wire structure:3*3mm,
Mesh hole size:300mm*500mm
Roll size: 3.5m x 5/10m
Features:
· Free choice of anchor points.
· Tensile strength:1770N/mm2.
· More than 250g/m2 zinc coated
· Fast mounting of the spiral rope net rolls over large areas.
· Suitable for reinforcing existing protection measures
· Practically invisible when the vegetation is established.
We offer a wide range of service to more than 70 countries all over the world.Our products have been exported to Europe, the U.S.A., the Middle East, Southeast Asia, Africa and some other parts in the world.
