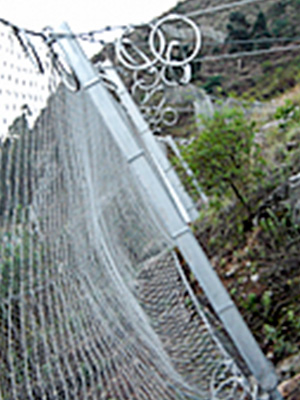

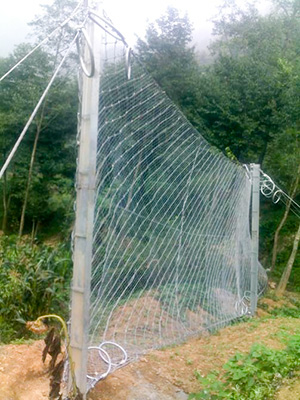

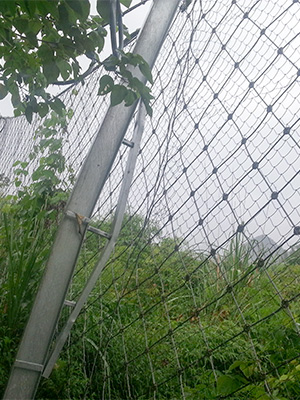

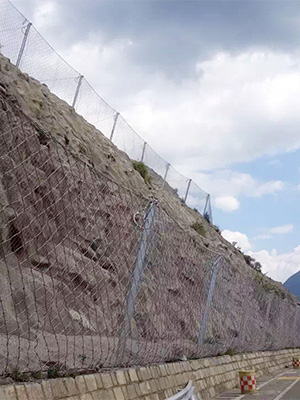

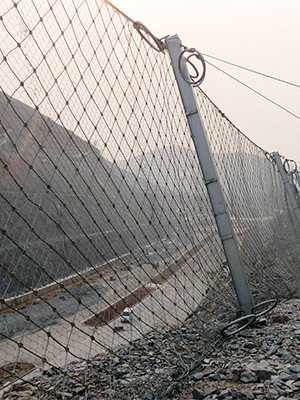

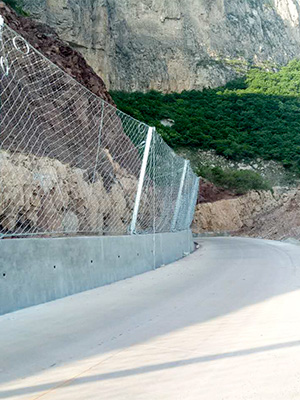

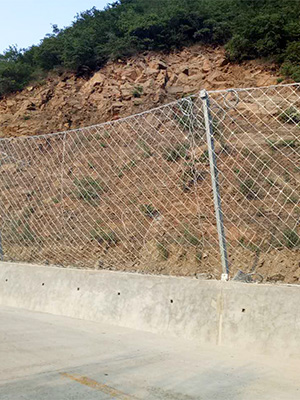

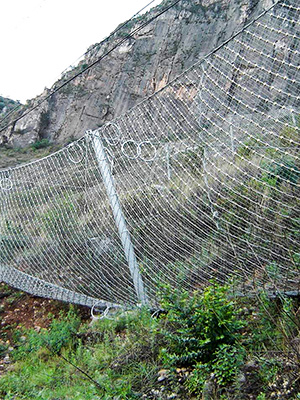

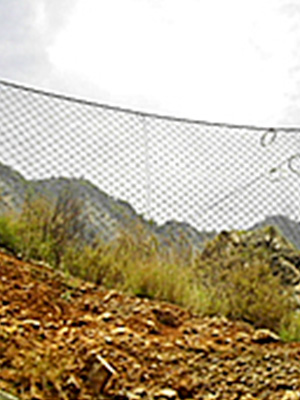

The rockfall barriers and fences are composed of high strength wire grid mesh, the anchor, I-steel column, the drop-down anchor rope, the ring of energy dissipation, and the base of support rope from top to bottom, and other components. Rockfall protective fences protect the formation of the regional slope, and prevent the collapse of the rock fall.
Steel rope consisted rockfall barriers defense system is flexible to intercept and strong enough to absorb and spread the rock , and energy dissipation of the ring net help the system's ability to further improve the impact resistance .
Rockfall protective fence for the energy from 250kj to 3000kj, and has been able to 5000kj up to a higher level of special protection.
Rockfall protective fence of the steel rope mesh is considered easy to install, also use declined the amount of the bolt and excavation to achieve the most rapid and easy installation of construction. All components of the system according to the standardized production, are installed on the construction site to the number of bolts. The installations mainly adopt like building block, so the installation personnels need only a small amount of conventional equipments, who can easily maintain and replace parts of the system..
According to <Railway industry standard:JT/T528-2004> & <Railway industry standard:TB/T3089-2004>
|
Type |
Mesh Type |
Structure configure |
Function |
|
RX-025 |
D0/08/250 |
Steel Post + Anchor Steel Wire , Support Rope + The Ring of Energies Disspation(Steel post space 10m) With the ring of the double Support Rope∮12 and + ∮16 I Type up anchor rope with 3 rings. ∮12 side anchor rope(single rope) Steel Wire Netting(◇08/250/4*5㎡), ∮8 oversewed Steel Wire,and steel wire grid. |
This Type barrier systerm for absorbing energies within 250 kj. |
|
RX-050 |
D0/08/200 |
Steel Post + Anchor Steel Wire + Support Rope + The Ring of Energies Disspation(Steel post space 10m) With the ring of the double Support Rope∮6and + ∮16 人 Type up anchor steel rope with 6 rings. ∮16 side anchor rope(single rope) Steel Wire Netting(◇08/200/4*4.5㎡), ∮8 oversewed Steel Wire,and steel wire grid. |
This Type barrier system for aborbing energies within 500 kj |
|
RX-075 |
D0/08/150 |
∮18 side anchor rope(single rope) Steel Wire Netting(◇08/150/4*5㎡), ∮8 oversewed Steel Wire,and steel wire grid. |
This Type barrier system for aborbing energies within 750 kj |
