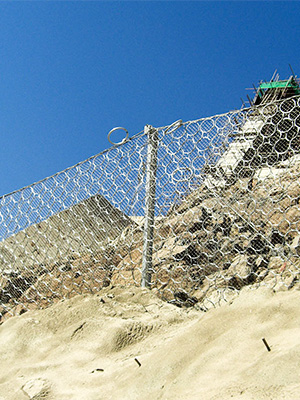

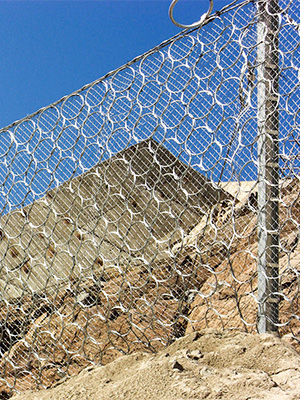

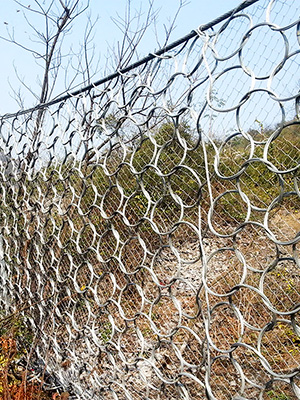

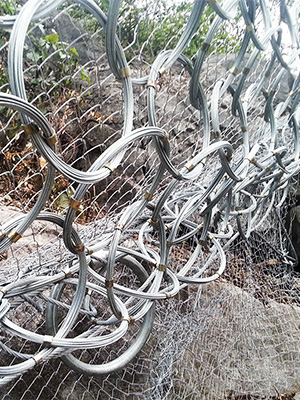

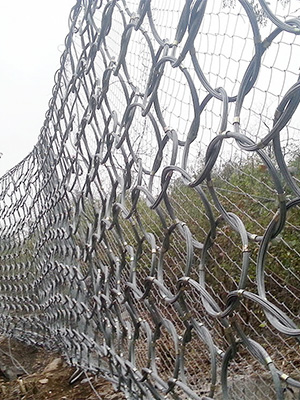

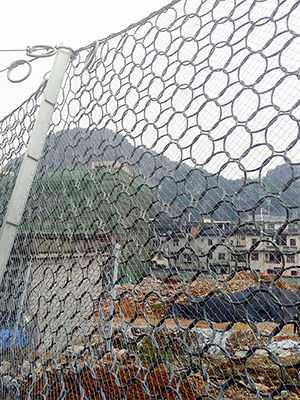

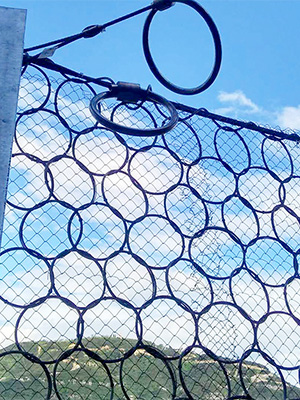

Debris Flow Barriers are made of high strength steel wire with diameter of 3mm and tensile strength of not less than 1700MPa, which is coiled into a ring by several loops and interlaced with each other. The general specifications are 5 3M/4M/5M/6M/7M.It has a strong ability of geometrical deformation and elastoplastic deformation, which leads to the strong energy absorption capacity of the flexible network itself, thus reducing the requirement on the bearing capacity of other components of the system.It is applicable to the high mountains with buffer zone next to the construction facilities to intercept rockfall, flying stone, avalanche and debris flow outside the construction facilities and avoid the destruction of the construction facilities caused by disasters.The interception strength is strong enough to absorb and disperse the impact kinetic energy of rockfall within 250kj-2000kj. The design and application of energy dissipation ring further improve the system's impact resistance, especially for rockfall up to 5000KJ.
Characteristics of passive ring network:
1. Easy to install.2. Long service life.3. Beautiful structure, strong and durable
|
Type |
Mesh Type |
Structure configure |
Function |
|
RX I-025 |
R5/3/300 |
Steel Post + Anchor Steel Wire , Support Rope + The Ring of Energies Disspation(Steel post space 10m) With the ring of the double Support Rope∮12 and + ∮16 I Type up anchor rope with 3 rings. ∮12 side anchor rope(single rope) Steel Wire Netting(◇08/250/4*5㎡), ∮8 oversewed Steel Wire,and steel wire grid. |
This Type barrier systerm for absorbing energies within 250 kj. |
|
RX I-050 |
R7/3/300 |
Same to RXI-025 |
This Type barrier systerm for absorbing energies within 500 kj. |
|
RX I-075 |
R7/3/300 |
Same to RXI-025 |
This Type barrier systerm for absorbing energies within 750 kj. |
|
RX I-100 |
R9/3/300 |
Same to RXI-025[Steel Post(space 9m), with energies dissipation ring ∮18 double support steel rope and ∮16 人type up-anchor steel wire(with 10 rings), ∮18 side anchor steel wire(single), Steel Wire Netting(◇08/120/4*4.5㎡) , ∮8 oversewed steel wire, steel wire grid. |
This Type barrier system for aborbing energies within 1000kj. |
|
RX I-150 |
R12/3/300 |
Same to RXI-025 |
This Type barrier system for aborbing energies within 1500kj. |
|
RX I-200 |
R19/3/300 |
Same to RXI-025 |
This Type barrier system for aborbing energies within 2000kj. |
