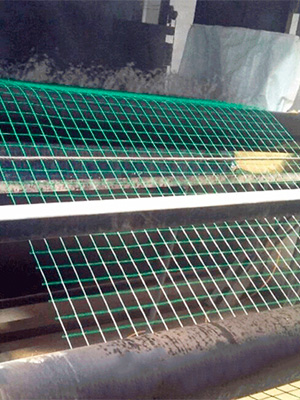

Using high quality raw materials, through galvanized, PVC hot shrink powder dip plastic protection of the welded roll network or mesh, steel wire after welding plastic coating, can also be alone electroplating, hot plating and plastic coating, with a long time anti-corrosion, anti-ultraviolet characteristics.

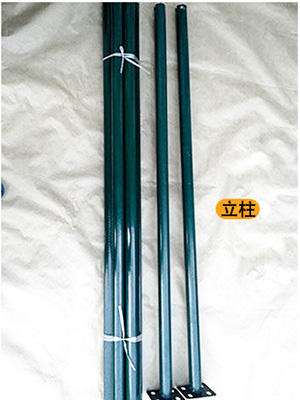

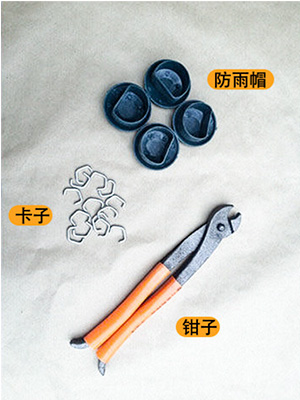

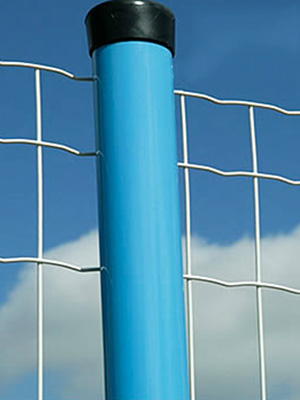

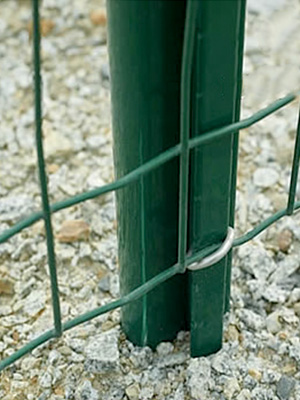

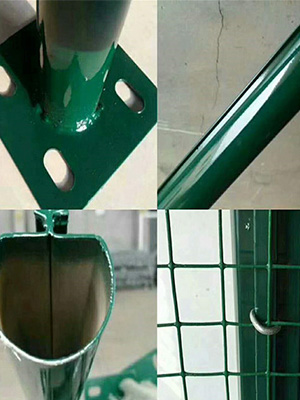

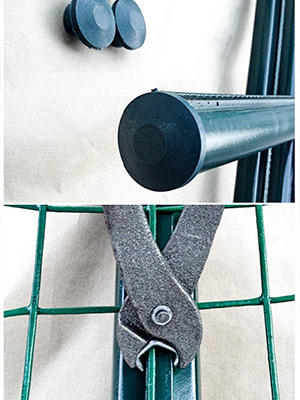

The net and column are mainly connected by special plastic clip or high strength stainless steel wire clip, which is easy to install and firm.

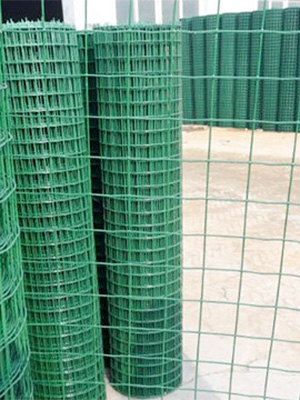

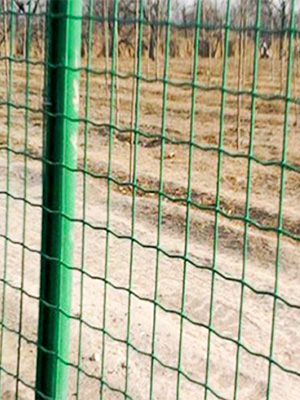

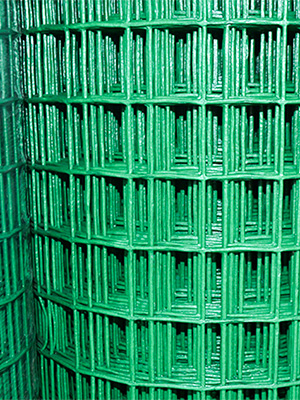

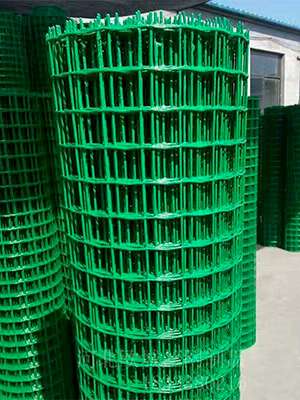

The design of horizontal double lines (evenly spaced) enhances the solidity of the Seine, while the wavy shape of the lines enhances the appearance of the Seine.The coil welded mesh ensures a greater degree of firmness and durability while maintaining a beautiful appearance.

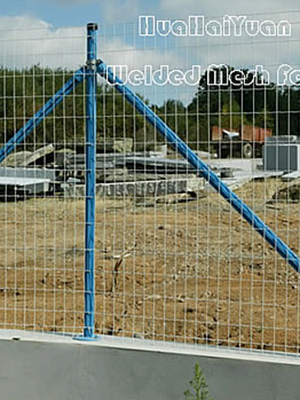

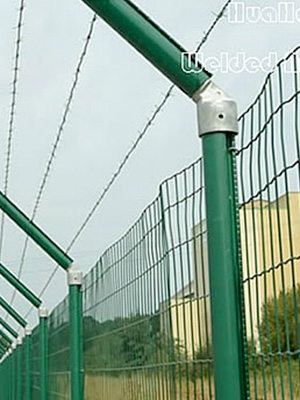

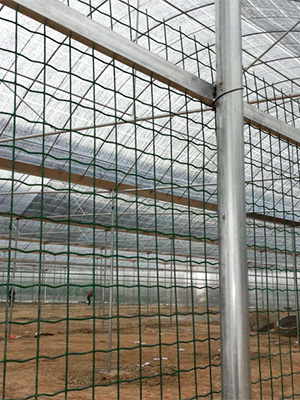

USES: highway barrier, railway, airport, residential area, port, feeding, animal husbandry and other protection.
Product technical performance：
|
The test items |
Performance indicators |
Execution standard |
|
fineness |
≤5% |
GB/T 6554 |
|
Coating thickness |
0.5mm-1.0mm |
GB/T 6554 |
|
The impact strength |
21.6J |
ASTMD 2794 |
|
The bending performance |
1级 |
GB/T 6742 |
|
adhesion |
1级 |
GB/T 9286 |
|
Elongation at break |
≥500% |
GB/T 1040 |
|
Artificial accelerated aging (1200h) |
No significant change |
GB/T 9344 |
|
Resistance to immersion in chemical media（168h 23±2℃）10%HCL 10%NaOH 10%NaCl |
No significant change |
GB/T 11547 |
specifications：
|
Mesh opening |
Wire diameter |
height |
length |
|
100mm*100mm |
1.7mm/2.1mm |
40CM-203CM |
5M,10M,25M |
|
100mm*75mm |
1.7mm/2.1mm |
40CM-203CM |
5M,10M,25M |
|
100mm*60mm |
1.8mm/2.2mm |
40CM-203CM |
5M,10M,25M |
|
100mm*50mm |
1.8mm/2.2mm |
40CM-203CM |
5M,10M,25M |
|
50mm*60mm |
2.0mm/2.5mm |
40CM-203CM |
5M,10M,25M |
|
50mm*50mm |
2.0mm/2.5mm |
40CM-203CM |
5M,10M,25M |
